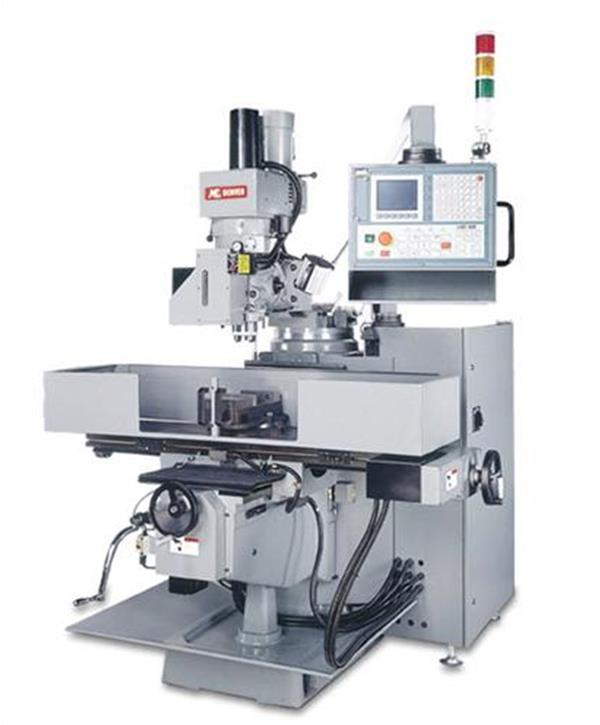

FEATURES
:
1. With POU YUAN TECHNOLOGY controller. LNC-500 series, easy
operation easy learning.
2. Automatic & hand operation for both using:
(1) For 2D/3D milling in automatic
operation.
(2) Keep handle design of XYW-axes for
simple milling in manual operation.
3. XYW axes with AC servo motor, hand operation with digital readout
effect.
4. Spindle speed to 4200rpm with high- low speed change design, offer best
choice of milling speed.
5. Column with gear brake motor, easy operation
SPECIFICATIONS (Unit: mm / inch)
|
ITEM / MODEL
|
UNIT
|
CNC-180
|
|
Travel & range
|
X travel ( longitudinal travel )
|
mm
|
820
|
|
Y travel ( cross travel )
|
mm
|
390
|
|
Z travel ( headstock travel )
|
mm
|
410
|
|
Table
|
Table size
|
mm
|
1473 X
318 ( 58」 X12.5」)
|
|
T-slots ( width X no. X pitch )
|
mm
|
16 X
3T X 80
|
|
Spindle
|
Spindle speed
|
rpm
|
L: 0 – 600
H: 500 – 4200
|
|
Spindle nose
|
mm
|
NT 40
|
|
Spindle travel
|
mm
|
85
|
|
Quill dia.
|
mm
|
105
|
|
Feed rate
|
Feed speed spindle
|
m/min
|
3
|
|
Feed speed XY axes
|
m/min
|
4
|
|
Feed speed Z axis
|
m/min
|
3
|
|
Motors
|
Drive motor spindle
|
HP
|
5
|
|
Drive motor X / Y, W axes
|
KW
|
X / Y
: 0.85 , W : 0.4
|
|
Drive motor Z-axis
|
HP
|
1/2
|
|
Coolant pump
|
HP
|
1/8
|
|
Measurement
|
Machine size: L X W X H
|
mm
|
2000 X
1900 X 2400
|
|
Packing size: L X W X H
|
mm
|
2100 X
2000 X 2050
|
|
N.W. / G.W.
|
KGS
|
1700 /
1900
|
|
STANDARD ACCESSORIES
|
|
1. Controller: POU YUEN LNC-500
|
7. Air draw bar
|
|
2. XYW axes AC servo motor
|
8. Table splash guard
|
|
3. XYW axes ball screw
|
9. Splash guard
|
|
4. Z-axis brake motor
|
10. Halogen ligh
|
|
5. Auto lubrication system
|
11. Tools & tool box
|
|
6. Coolant system
|
12.
Operation manual
|
|
OPTIONAL ACCESSORIES
|
|
1. Controller: POU YUEN LNC-520
|
3. 4th axis
|
|
2. Transformer
|
4. 3 axes liner scale
|
