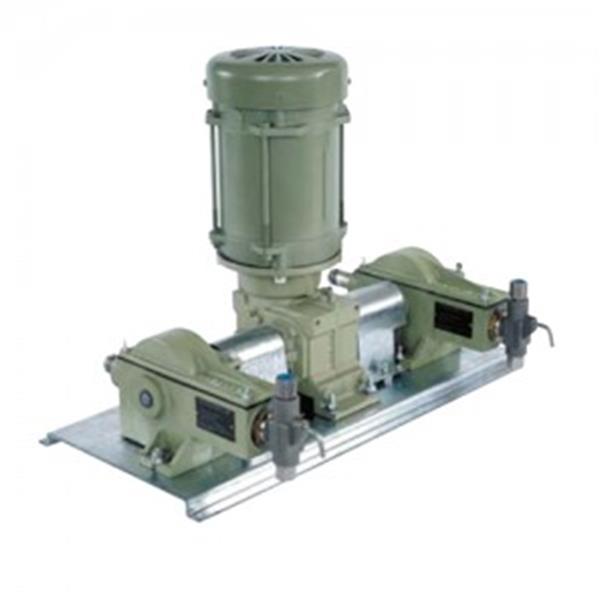

Texsteam Series 2500 chemical injection pumps are electric driven, positive displacement pumps utilizing C-faced motors and common gear reducers. The gear reducers are available in 15, 30, 60, and 120 strokes per minute configurations. By utilizing even further flexibility of a wide variety of plunger sizes, the Series 2500 can fill many application requirements of different flows and pressures.
The Series 2500 can have up to four, flow adjustable heads while running fluid ends.
OPTIONS: Ceramic plungers, which provide longer packing life, and a wide variety of packing are designed to meet the demands of many different chemical applications.
■ Maximum discharge pressure: 6,000 psi (414 bar) with 3/16” plunger
■ Maximum volume 139 gallons per day per head (528 liters per day) with 1/2” plunger
■ Each head is adjustable while running
■ Available simplex, duplex, triplex, or quadruplex configurations
■ Mix or match head sizes – pump the same or different chemicals
■ Available in four stroke rates: 15, 30, 60, or 120 strokes per minute
■ Each head is independently coupled and easy to maintain in the field
■ 1 or 3 phase, TEFC or explosion proof, 50 or 60 Hz motors available
■ Available with 3/16”, 1/4”, 3/8”, or 1/2” plunger
