Van Cầu T-PATTERN

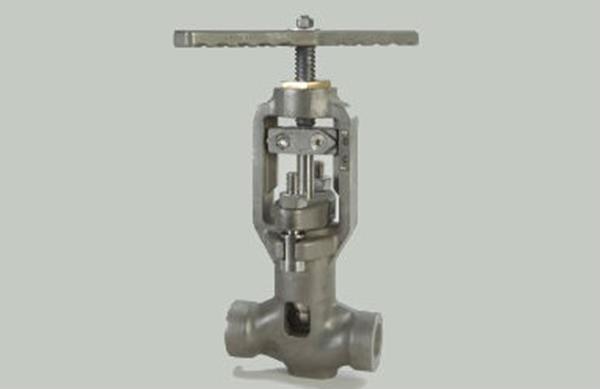

T-PATTERN GLOBE VALVES - 1878

The 1878 T-Pattern Globe Valve is a rugged, one-piece, low-profile globe valve constructed with investment cast body/yoke assembly using the latest investment casting techniques.

T-PATTERN GLOBE VALVES - ANCHOR/DARLING

Anchor/Darling T-Pattern Globe Valves are high-performance, investment cast stop valves designed to minimize destructive turbulence in a variety of demanding throttling applications.

T-PATTERN GLOBE VALVES - VOGT

The Vogt T-Pattern Globe Valve is a reliable globe valve with a body/bonnet threaded connection. It is designed to support the full longitudinal stress induced by the operating pressure, and prevent joint failure caused by seal weld failure.

T-PATTERN GLOBE VALVES - VOGT CRYOGENIC GLOBE VALVE

Vogt valves support a worldwide network of distributors with access to the world’s largest capability for the manufacturing of forged steel valves.

FEATURES & BENEFITS

  • Increased uptime via large radius curves in body design to ensure smooth transitions and eliminate abrupt changes in fluid direction
  • Broad application versatility in high-temperature, high-pressure applications enabled by a wide range of pressure and size options
  • Longer service life from body and plug designed to minimize cavitation
  • Available with functional qualifications per pressure classes 150 through 1500 for nuclear service

STANDARDS

  • ASME B16.34
  • ASME Section III

Size Range:

  • NPS 2 1/2 to 24
  • DN 65 to 600

Pressure Class Range:

  • 150 to 1500
  • PN 25 to 260

Seating Material: Metal
