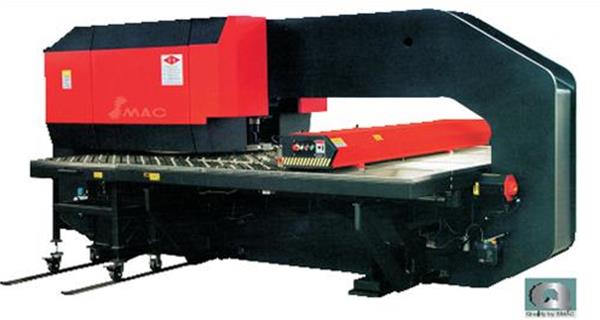

HP-H300 CNC Turret Punch Machine
The high precision level hydraulically operated system is equipped with the machine, the speed and stroke are variable and the pressing speed is up to 600HPM.
The high precision large traverse ballscrews and linear guide ways with reliability are equipped for driving.
The reliable world famous CNC system with digital AC servo motor make the machine very reliable.
The main pneumatic parts are imported name ones to make the mechanism more reliable.
The fully bushed high precision turret improves efficiently the accuracy and longevity of the turret, and the 24,32 stations is optional.
The advanced working and heat treatment technology is adopted to the tools for the longevity.
Sectionalised worm and gear construction can make auto index reach extremely high precision. Max. Diameter is 88.9mm.
Flexible configuration with long or short tools can be selected by the requirement of different customers.
The frams closed style make the figidity very well (300, 400, 500, 600, 800).
High Speed Hydraulic Ram
The hydraulic system has a high speed, high efficiency and very reliable.
It makes the stroke variable, dropping quickly and slow punching and full speed return. It increases the punch rate while you can get a qualitied part.
You can get full punch force in the full stoke with very lower noise.
The stroke is adjustable which make it easy to make louver, emboss,extrusion. The system is anti-overload automatically.
Unique Turret
The up and lower are machined together by the special machine in order to make station alignment. Bushed equipped with 2 keyways for manual setting of specific tools.
Featured auto index
Combined synchronization belt and worm wheel transfer can get high accuracy. Sectionalized worm wheel constructs eliminate the clearance. The flexible designs of this structure make it easy that the 2 index stations can be changed to 4 Max. diameter is 88.9mm.
High Precision Tool
Of high quality alloy steel for durability
Spring stripping mechanism with guide construction for distortion free holes
Plain workplaces with little burrs
The work range can be expanded with auto indexing stations
Special tools are available for irregular holes.
Pneumatic Clamp
Fitted with floating pneumatic calmp,it can float when the sheet has a up downmotion. This can keep the sheet in a good motion condition.
With this clamp you get small dead zone while the clamp can go into the gap between the up and lower turret.
This increases the production range of the sheet.
Hydraulic Clamp(option)
Fitted with hydraulic clamps, different material can fitted in and the press can be adjusted suitably.Thin clamp make themselves to into the gap easily. Detect device always make the CNC control the actually position of the clamps.
Brush and Steel Table
With brush and steel table, sheet can be supported fully during punch. It lower downs the noise, vibrating and wearing to the sheet, which make the sheet free of scratch.
Central lubrication system
This system can send the oil easily to anywhere need to be lubricated. Decreasing the friction, increasing the life of the moving part.
High precision ball screw and lead guide
Master ball precision screw and liner guide ways products of Japan and Germany, have ensured the preci-
sion of operation and orientation.
Auto Program software(option)
Equipped with tool management, autopunch, optimized punch path:stransfer the drawing from CAD file,
Process, Tool library, microjoint, optimized the special tool, auto-reposition.
The first class CNC controller
Equipped with the first class control system and servo unit, It can make the machine very reliable.
Features: In-sltu programming or in office programming
Universal ports RS232
Pulse coder semi-close loop feed back
AC servo drive system
Self diagnose function
Gripper auto protection
G code program
Long distance diagnose
