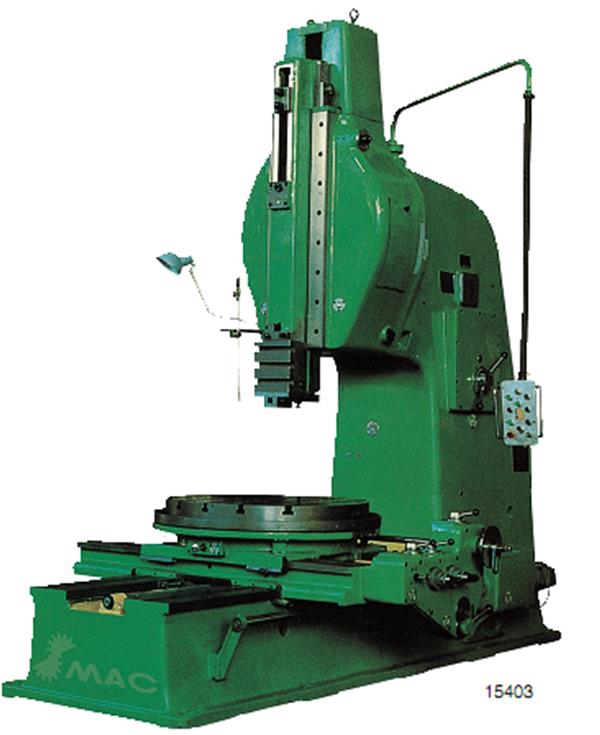

MODEL
|
B5050A
|
|
Max. slotting length
|
500mm
|
|
Table diameter
|
1000mm
|
|
Cross traverse of work table
|
660mm
|
|
Longitudinal traverse of work table
|
1000mm
|
|
Max. weight of workplece
|
2000kg
|
|
Distance between tool holding Surface and column front
|
1000mm
|
|
Range of ram adjustment
|
430mm
|
|
Distance between worktable and the lower side of slide
|
740mm
|
|
Inclination of ram head (Left or right directions)
|
+100deg
|
|
Number of ram strokes (per min.)
|
9, 12.5, 18, 25, 36, 50.
|
|
Longitudinal and cross feeds of worktable (mm. per ram stroke)
|
0.1, 0.2, 0.3, 0.4, 0.6, 1.2mm
|
|
Rotary feeds of worktable (min per ram stroke)
|
3’, 6’, 9’, 12’, 18’, 36’ dr/per
|
|
Max. cutting force
|
1600N
|
|
Rapid travers motor
|
1.5kw 1440r.p.m
|
|
Main motor
|
7.5kw 1440r.p.m
|
|
Coolant pump motor
|
0.125kw 2800r.p.m
|
|
Net weight of machine (approx.)
|
10.3t
|
|
Overall dimensions (L x W x H)
|
3480 x 2085 x 3307mm
|
