ITEM
|

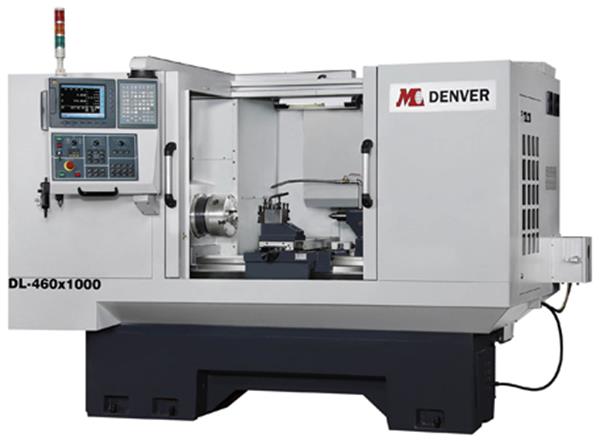

DL-460 /
510 / 560
|
|
MODEL
|
750
|
1000
|
1600
|
|
CAPACITY
|
Swing over bed
|
460 (18.11")
/ 510 (20.08") / 560 (22.05")
|
|
Swing over cross slide
|
280
(11.02") / 330 (12.99") / 380 (14.96")
|
|
Distance between centers
|
750(29.53")
|
1000
(39.37")
|
1600
(63")
|
|
Width of bed
|
300
(11.81")
|
|
Width of gap
(Spindle end Face)
|
245
(9.65")
|
|
Length of Bed
|
1700(67")
|
1950
(76.77")
|
2550
(100.4")
|
|
HEADSTOCK
|
Spindle bore
|
60
(2.36") or optional-90 (3.54")
|
|
Spindle Taper
|
MT#6-1/2
|
|
Spindle nose
|
A2-6
or A2-8 (optional)
|
|
Range of spindle speed
|
3000
r.p.m.
|
|
No. of spindle speed
|
variable
speeds
|
|
TRAVEL
|
X-axis
travel
(cross slide travel)
|
Manual 4-way : 230 (9.05")
|
|
◎It is changed by different turret.
|
|
Z-axis
travel
(longitudinal travel)
|
650 (25.59")
|
900(35.43")
|
1500 (59.05")
|
|
◎It is changed by different turret, chuck or
tailstock.
|
|
X-axis
ball screw diameter
|
25 mm , pitch 5 mm
|
|
Z-axis
ball screw diameter
|
50 mm , pitch 10 mm
|
|
FEED
|
X-axis
rapid feed
|
5000 mm/min (196.85" /min)
|
|
Z-axis
rapid feed
|
7500 mm/min (295.28" /min)
|
|
X-axis
cutting feed rate
|
0-3000 mm/min (118.11" /min)
|
|
Z-axis
cutting feed rate
|
0-5000 mm/min (196.85" /min)
|
|
TURRET
|
Tool station
|
Manual
4-way (OP: H4, V8, V12 )
|
|
TAILSTOCK
|
Quill diameter
|
56
(2.2")
|
|
Quill
travel
|
150 (5.9")
|
|
Taper of
center
|
MT#5 (OP : MT#6 for A2-8 )
|
|
Body
movement
|
Carried by saddle
|
|
Quill
movement
|
Manual ( OP: Hydraulic type)
|
|
MOTOR
|
Spindle motor
|
7.5 HP
(5.5kw)
|
|
X-Axis
servo motor
|
0.85 Kw
|
|
Z-Axis
servo motor
|
1.30 Kw
|
|
Hydraulic
pump motor
|
if install hydraulic system, then 2HP
|
|
Coolant
pump
|
1/8 HP
|
|
MEASUREMENT
|
N.W./G.W.
(approx)-DL-460
|
2300 / 2550
|
2500 / 2800
|
2900 / 3300
|
|
N.W./G.W.
(approx)-DL-510
|
2500 / 2750
|
2700 / 3000
|
3100 / 3500
|
|
N.W./G.W.
(approx)-DL-560
|
2700 / 2950
|
2900 / 3200
|
3300 / 3700
|
|
Packing
dimension (LxWxH) (approx)
|
2500x2250x2210
|
2750x2250x2210
|
3350x2250x2210
|
|
Standard Color
|
Upper
Parts: RAL-7035 (light gray) + Base : RAL-7024 (dark gray)
|
