FEATURES :
1.One piece Meehamite casting machine base.
2.Metric & inch gear box with full range, no-need gears exchange.
3.Apron enforced oil supply with safety device is used to avoid collision.
4.Bed ways & face of compound rest have been ultra-frequency treated &
ground with longer life.
5.Cross way feeding guides screw: 2points support for heavy cutting.
6.Length safety foot brake.
7.Dynamically balanced alloy spindle by 3 point support.
8.Hardened & precision ground gears.
SPECIFICATIONS (Unit: mm / inch)
|
ITEM
|

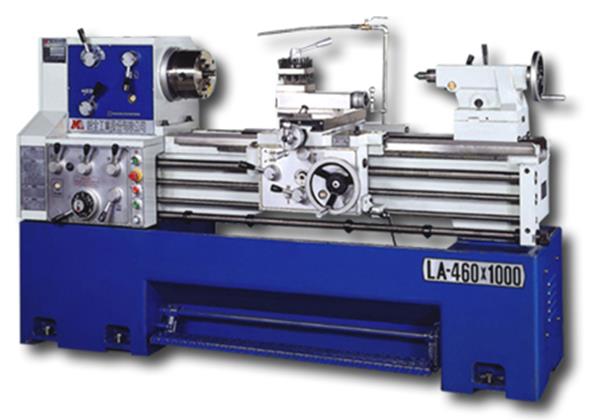

LA-460
|
|
MODEL
|
750
|
1000
|
|
CAPACITY
|
Swing over bed
|
460 (
18.11" )
|
|
Swing over cross slide
|
295 (
11.6" )
|
|
Distance between centers
|
750 (
29.53" )
|
1000 (
39.37" )
|
|
BED
|
Swing over gap
|
650 (
25.6" )
|
|
Width of bed
|
315 (
12.4" )
|
|
Width of gap (spindle end face)
|
210 (
8.27" )
|
|
Length of bed
|
1380 (
54.33" )
|
1880 (
74" )
|
|
HEADSTOCK
|
Spindle bore diameter
|
ø52
(2.05")
|
|
Numbered of spindle speeds
|
8
steps
|
|
Range of spindle speeds
|
80-1400
r.p.m.
|
|
Spindle nose
|
ASA
A1-6
|
|
Taper of spindle
|
M.T.#6
|
|
CARRIAGE
|
Width of carriage
|
430 (
17" )
|
|
Cross slide travel
|
250 (
9.84" )
|
|
Top slide travel( Compound rest travel )
|
125 (
4.92" )
|
|
Max. size cutting size
|
20x20
( 0.79"x0.79" )
|
|
TAILSTOCK
|
Diameter of barrel
|
Ø52 (2.05")
|
|
Travel of barrel
|
140
(5.51")
|
|
Taper of barrel
|
M.T. 4
|
|
THREADS
|
Lead screw dia.& pitch
|
Dia
35mm Pitch 6mm / Dia.1" x 4 T.P.I
|
|
Range of metric pitches
|
0.5 -
7.0 ( 22Nos )
|
|
Range of inch pitches
|
4 - 56
T.P.I. (36Nos )
|
|
Range of diametrical pitches
|
8-112
D.P. ( 36Nos )
|
|
Range of module pitches
|
0.25-3.5 M.P. (14Nos)
|
|
FEEDS
|
Feed rod diameter
|
28 (
1.1" )
|
|
Range of longitudinal feeds
|
0.05 -
0.7 mm/rev ( 0.0197"-0.0276" in/rev )
|
|
Range of cross feeds
|
0.025-0.35 mm/rev ( 0.001"-0.0138" in/rev )
|
|
MOTOR
|
Main spindle motor
|
5 HP (
3.75kw )
|
|
Coolant pump motor
|
1/8 HP
(0.1kw)
|
|
MEASUREMENT
|
N.W.(approx)
|
1200
kgs
|
1300
kgs
|
|
G.W.(approxt)
|
1380
kgs
|
1500
kgs
|
|
Shipping dimensions (LxWxH)
|
1900x800x1400
75"x32"x55"
|
2200x850x1400
87"x34"x55"
|
|
STANDARD ACCESSORIES
|
|
1. XZ-axes auto lubrication system
|
1 set
|
8.Center sleeve
|
1 pc
|
|
2. Metric/ lnch gear box
|
1 set
|
9.Center
|
2 pcs
|
|
3. Coolant device
|
1 set
|
10.Tool post screw wrench
|
1 set
|
|
4. Longitudinal apron motion feed
|
1 set
|
11.Level pads
|
1 set
|
|
5. Tailstock
|
1 set
|
12.Tools& tool box
|
1 set
|
|
6. 3-Jaw scroll chuck7」
|
1 set
|
13.Operation
manual
|
1 set
|
|
7.Steady rest Ø6」
|
1 set
|
|
|
|
OPTIONAL ACCESSORIES
|
|
1. Follow rest
|
1 set
|
|
2. 4-jaw independent chuck 12」
|
1 set
|
|
3.
Face plate 14」
|
1 set
|
|
4.
Back flash guard
|
1 set
|
|
5. Halogen light
|
1 set
|
|
6. Digital readout linear scale
|
1 set
|
|
7. 3-Jaw strong scroll cruck
|
1 set
|
